Description

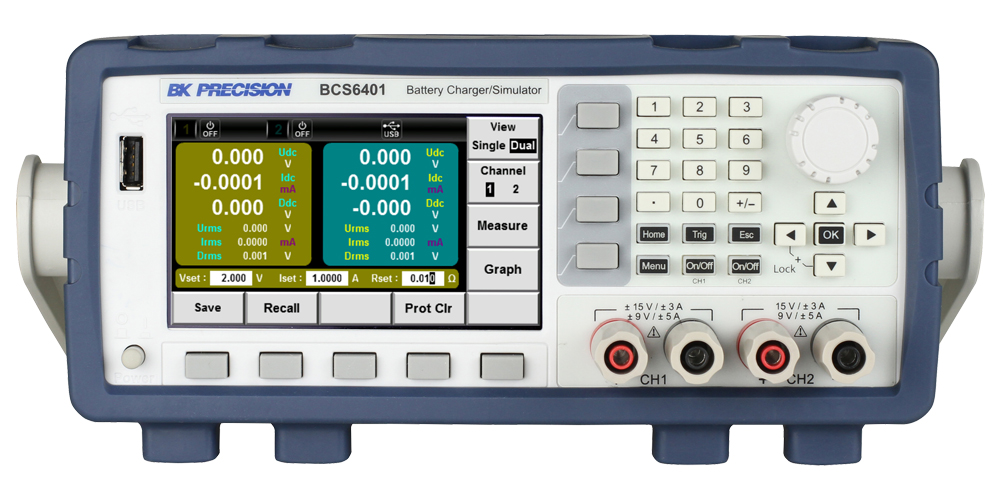

The BCS Series battery charger/simulator and precision DC Power supplies are optimized for testing batteries and battery-operated devices. This series features source/sink capabilities, a bipolar output, and a variable output impedance with dedicated battery charge, discharge, and simulation modes. Additionally, both models serve as a precise single channel or dual channel DC power supply with fast transient response and low ripple/noise characteristics.
Applications include evaluating batteries and charger circuitry used in cell phones, wearable devices, and other IoT devices.
• Source or sink up to 150 W with 2-quadrant operation
• Compact 2U form factor
• Dual channel and dual range operation (model BCS6401 only)
• Perform battery charge, discharge, and simulation tests
• Bipolar output
• Sink current up to 5 A
• Variable output impedance 0 Ohm to 1 Ohm
• Low noise < 3 mVpp
• Fast load recovery time
• High 100 nA current readback resolution
• OVP, OCP, OTP, and key-lock protections
• USB (USBTMC-compliant) and LAN interfaces
