Description

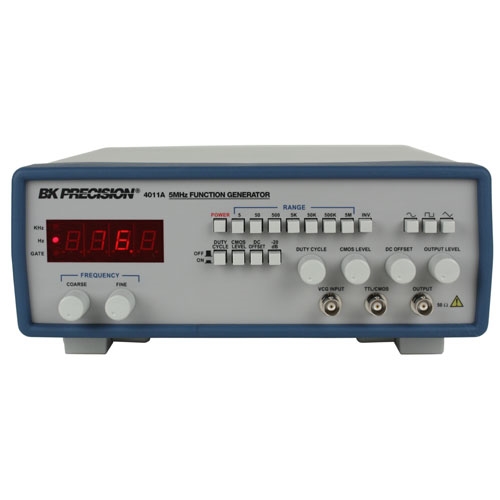

A popular 5 MHz generator for general bench and lab use
Technical data
■ 0.5 Hz - 5 MHz
■ Sine, Square, Triangle, Pulse, and Ramp output
■ Coarse and fine tuning knobs
■ 4-digit LED display
■ Variable amplitude output plus 20 dB attenuator
■ Variable duty cycle
■ Variable DC offset
■ 20 Vpp output into open circuit (10 Vpp into 50 Ω)
