Description

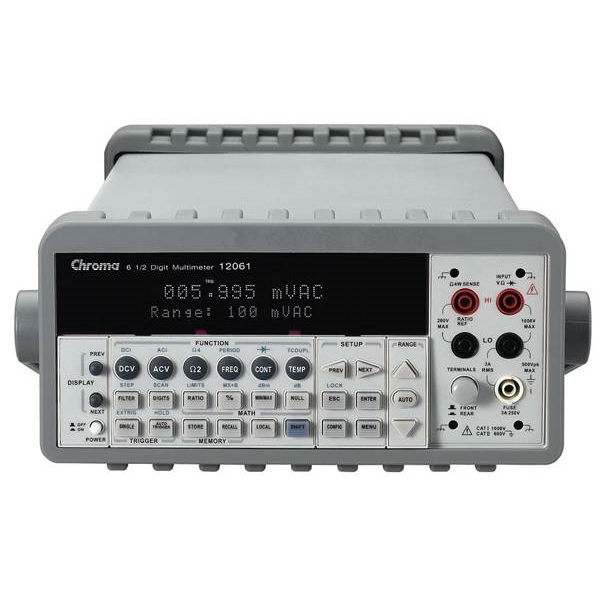

The 12061 6½ Digital Multimeter provides 11 types of measurement functions containing DC voltage/ current, AC voltage/current, resistance 2/4-wire ohms, period, frequency, diode, continuity and temperature as well as diverse math functions of NULL, Max/Min/Avg, High/Low limit, High/Low limit, Percentage/Ratio/MX+B, dB/dBm and etc. Along with trigger and memory function.
Can provide PASS/FAIL signal to system by USB port (with high/low limit set).
Technical data
- DC voltage accuracy : 0.0015%
- AC voltage accuracy : 0.04%
- Optional Multi-point Scanner Card (10/20ch)
- Measurement and data transmission up to 2000 readings/sec (4½)
- Up to 2000 readings memory storage
- Standard SCPI control
- Standard USB interface, support USBTMC
- Optional GPIB interface
- Software control support
- Chroma 12061 software
- LabView® Driver
