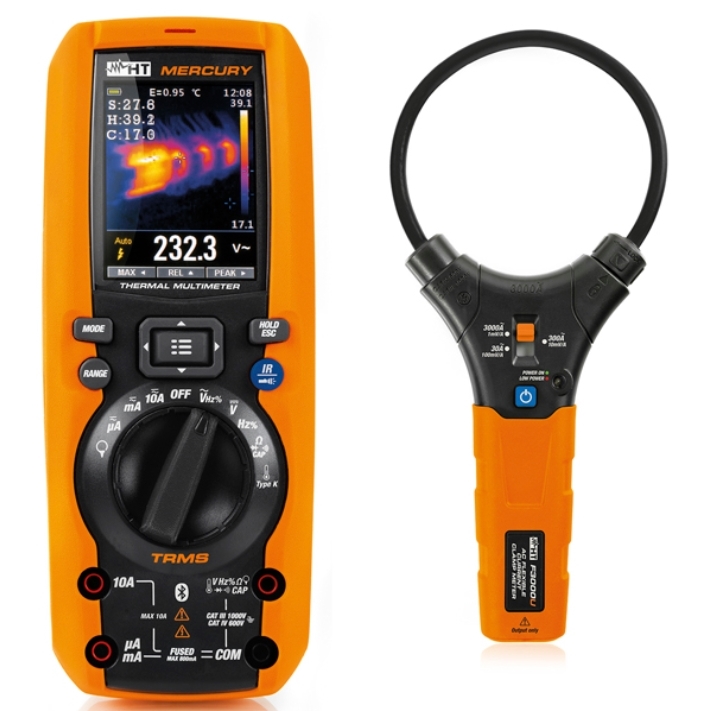

HT Mercury - TRMS Thermal MultimeterHT Mercury

Description

• Temperature range -20°C ÷ 260°C (-4°F ÷ 500°F)
• Measurement unit °C, °F, °K
• Spectral range 8 ÷14μm
• Resolution / Pxl size 384x288 pxl / 25μm
• Field of View (FOV) 21° x 21° (7.5mm lens)

• AC TRMS / DC Voltage (1000V / 1000V)
• AC TRMS / DC Current (10A / 1000A - with standard transducers clamps / 3000A - AC TRMS with flexible clamp )
• Resistance (60 MΩ)and continuity test with buzzer
• Capacitance (6 mF)
• Temperature with type K probe (-40°C ÷ 1000°C / -40°F ÷ 1800°F)
• Diode test
• Frequency 10 MHz
• DATA LOGGER (Internal memory) for saving/recall data
• SD card
• Data HOLD, REL, MAX/MIN/AVG, LOCK, AUTOTEST, HFR, RANGE, SMOOTH
• Colour TFT, 6000 counts, sign, decimal point and bargraph
• Bluetooth connection (BLE 4.0) for connection to mobile devices (by means HTMercury APP)
• Auto Power OFF
