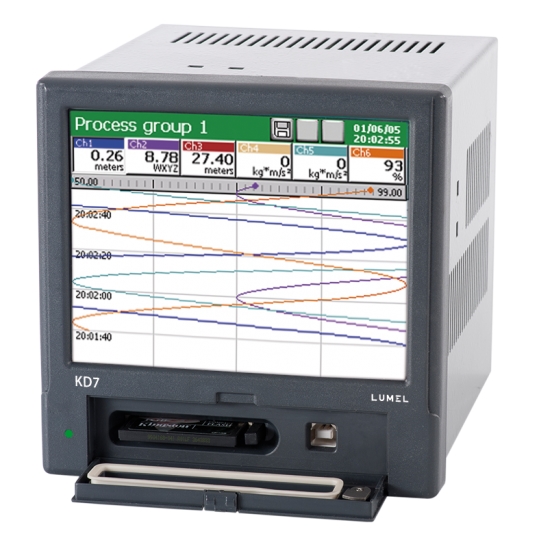

Lumel KD7 - Screen recorderKD7

Code: KD7

Description

KD7 recorder is applied as a data acquisition station in measuring systems.
It finds application to measure, visualize and supervise technical process parameters in various industrial branches, e.g. in pharmacy, food, chemical.
It can be also used as an autonomous measuring and recording device.

Depending on needs, the user has the choice of following communication interfaces: RS-232, RS-485 MODBUS Master and Slave, MODBUS Slave TCP/IP (NEW), ETHERNET 10 Base-T, USB 1.1 Device,
Possibility to exchange of configuration data between the recorder and PC through the USB interface or the CompactFlash card,
The „HTTP server" (WWW) enables to carry out through the WWW browser, the preview of the recorder current state* and the sampling
Mathematical functions,
Archiving and visualisation of measuring data transmitted to KD7 from external devices via RS-485 MODBUS or Ethernet.
6 or 12 galvanically isolated analog measuring channels,
16 measuring channels for data transmitted through communication interfaces,
16 or 32 alarms and 8 or 16 digital inputs,
4 or 8 analog outputs
Digital and analog indicators,
Statistics
Exchangeable external memory (CompactFlash card), from 16 MB up to 4 GB,
6 MB internal memory
