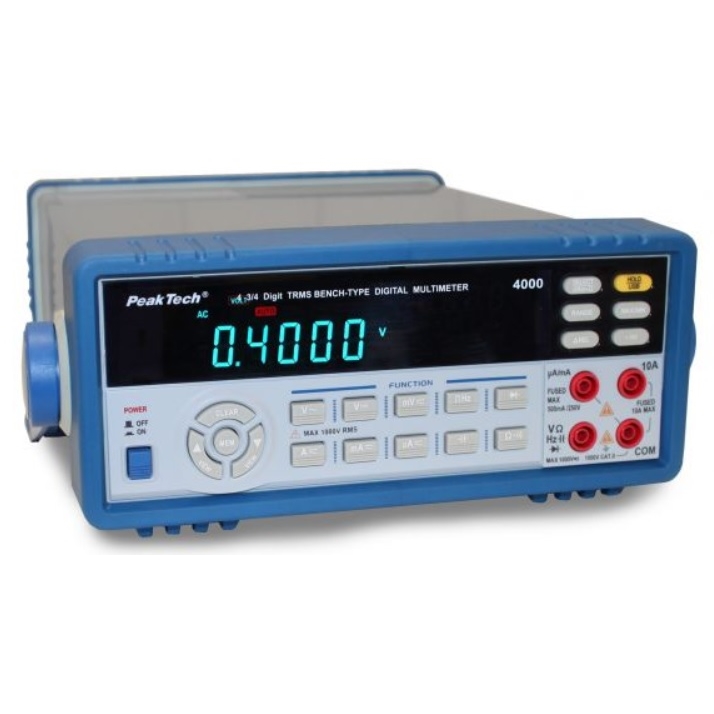

Peaktech P4000 - Digital-Bench Multimeter ~ 4 ¾digit, 53.000 Counts ~ with RS-232 & USBP4000

Description

High accurate and stable digital bench type multimeter with a 24 bit A/D converter, controlled by a single-chip computer. It can operate 10 measurement functions, not only DC, AC, rms, but DC and AC mixture signals RMS can measured for 1000 V or 10 A.
This bench type multimeter is controlled and calibrated by software.

Technical data

• DCV: 50/500 mV/5/50/500/1000 V; 1 µV; ± 0,03 % + 6 dgt.
• ACV: 50/500 mV/5/50/500/1000 V; 1 µV; ±±0,5 % + 40 dgt.
• DCA: 500/5000 µA/50/500 mA/5/10 A; 0,01 µA; ± 0,15 % + 10 dgt.
• ACA: 500/5000 µA/50/500 mA/5/10 A; 0,01 µA; ± 0,75 % + 10 dgt.
• Ohm: 500 Ω/5/50/500 kΩ/5/50 MΩ; 10 mΩ; ± 0,1 % + 5 dgt.
• Capacitance: 50/500 nF/5/50/500/5000 µF; 0,01 nF; ± 1,0 % + 10 dgt.
• Frequency: 5 Hz ~ 200 kHz; 1 mHz; ± 0,006 %; + 4 dgt.
