Description

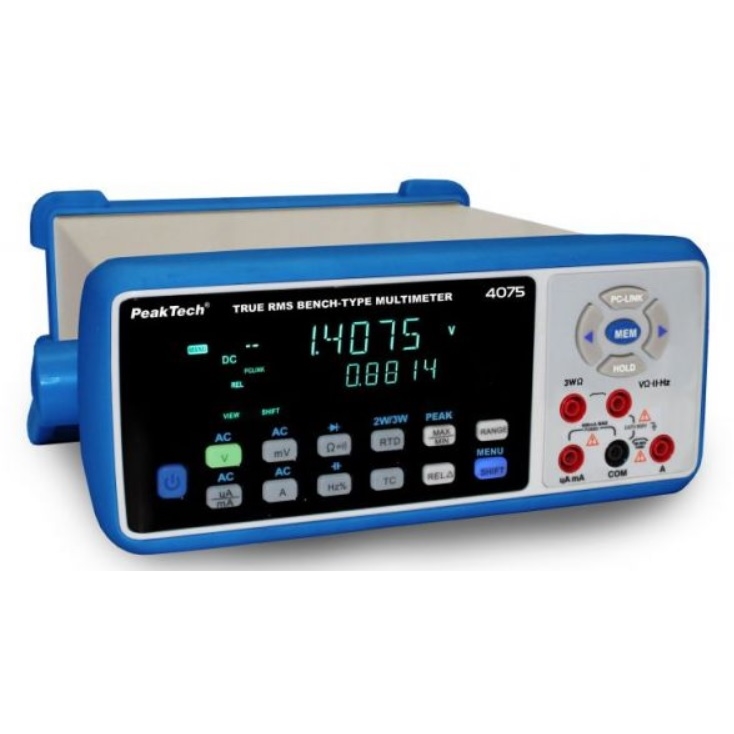

High-precision digital bench-type multimeter, equipped with a dual 4 5/6 digits display. Its many features are completed by the true RMS measurement, the temperature and the 3-wire resistance temperature detector measurement. The PC-control and data acquisition software, integrated data logger function with internal memory, USB-Disc or external SD memory card, wireless BluetoothTM connection to your PC, integration into the corporate network via LAN-network connection, as well as the data connection via USB provides a wide variety of applications.
Technical data
- DCV: 60/600 mV/6/60/600/1000 V; 1 μV; ± 0,03 % + 6 dgt.
- ACV :600 mV/6/60/600/1000 V; 10 μV; ± 0,7 % + 80 dgt.
- DCA: 600/6000 μA/60/600 mA/ 6/10 A; 0,01 μA; ± 0,15 % + 10 dgt.
- ACA :600/6000 μA/60/600 mA/6/10 A; 0,01 μA; ± 0,8 % + 80 dgt.
- Ohm: 600 Ω/6/60/600 kΩ/6/60 MΩ; 0,01 Ω; ± 0,1 % + 5 dgt.
- Frequency: 4 Hz ... 60 MHz (square), 4 Hz ... 60 kHz (sine); 1 Hz; ± 0,01 % + 10 dgt.
- Capacitance: 6/60/600 nF/6/60/600 μF/6/60 mF; 0,1 pF; ± 2 % + 150 dgt.
- Temperature: -200°C ... +1370°C (Typ-K); 0,1°C; ± 0,7 % (TC) ± 0,7°C
