Description

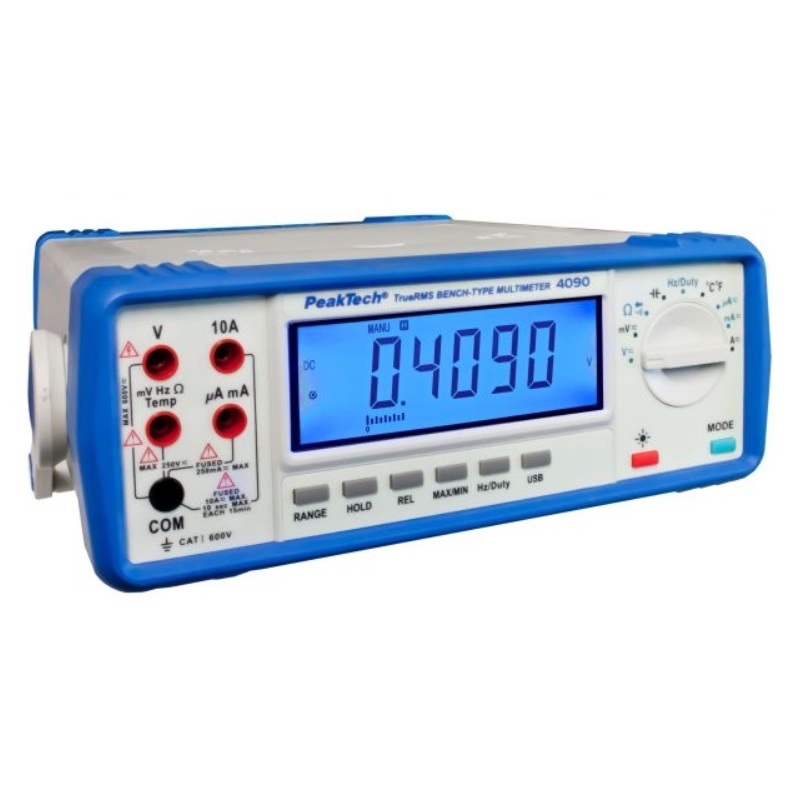

This high-precision digital bench type multimeter offers highly accurate measurements and has a large 4 ½ digit LCD display with backlight.
It can be used both in the laboratory in network operation, and in the mobile service in battery mode. In this way, the device offers a variety of applications.
The useful additional features such as True RMS measurement (True RMS), relative value measurement, MIN/MAX- and DATA-hold function round off the versatility of this device.
Technical data
- DCV: 220 mV/2,2/22/220/600 V; 10 μV; ± 0,05 % + 6 dgt.
- ACV :220 mV/2,2/22/220/600 V; 10 μV; ± 0,5 % + 30 dgt. Frequ.-range: 40Hz ... 30kHz
- DCA: 220/2200 μA/22/220 mA/10 A; 0,01 μA; ± 0,2 % + 15 dgt.
- ACA :220/2200 μA/22/220 mA/10 A; 0,01 μA; ± 0,8 % + 30 dgt. Frequ.-range: 40Hz ... 5kHz
- Ohm: 220 Ω/2,2/22/220 kΩ/2,2/22/220 MΩ; 10 mΩ; ± 0,1 % + 10 dgt.
- Capacitance: 22/220 nF/2,2/22/220 μF/2,2/22 mF; 0,01 nF; ± 2,0 % + 5 dgt.
- Frequency: 20 Hz ~ 220 MHz; 1 mHz; ± 0,06 %; + 10 dgt.
- Temperature: -20°C ~ 1000°C; 0,1°C; ± 1,5 %; + 3°C
