Description

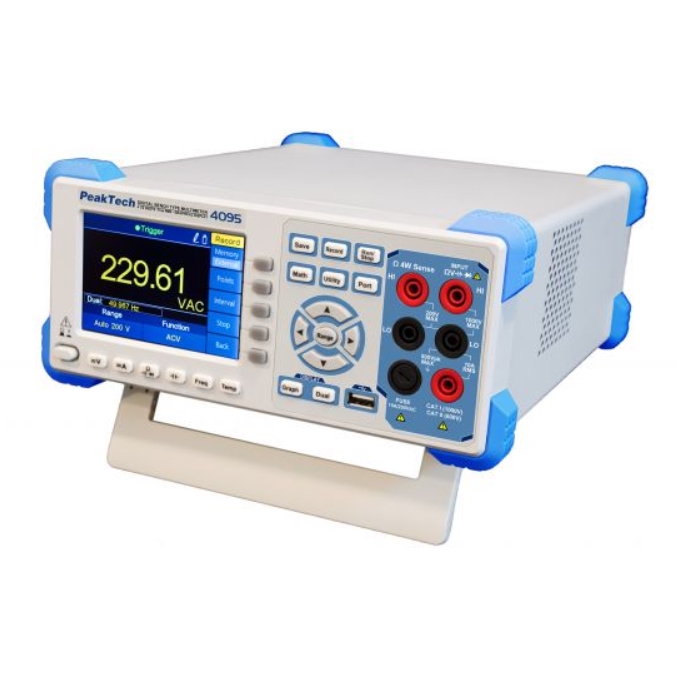

Precision bench multimeter with TFT graphics-display for high-resolution presentation of the measured values, curves, functional diagrams and many more, up to 150 measurements / second. This model is equipped with a variety of special features such as dual measurement of two different measurement functions, internal or external data logger, histogram, dB, pass/fail, thermal resistors or thermocouple - Measurements, curves, function graphs, average views or bar graphs. The versatile functions are complemented by True RMS measurements up to 100kHz. For control via software or via SCPI protocol, the model has USB-, RS-232 or a LAN interface for the network connection.
Technical data
- 4½ digits (60000 counts) 4" TFT-Graphics Display (480x320 Pixels)
- DCV: 600mV/6/60/600/1000 V; ± 0,02 % + 0.01
- ACV: 600 mV/6/60/600/750 V; ± 0,2 % + 0.06
- ACV: TRMS Frequency 20 Hz - 100 kHz
- DCA 600μA/6/60/600 mA/6/10 A; ± 0,06 % + 0.02
- ACA: 60/600mA/6/10 A; ± 0,5 % + 0.1
- ACA: - TRMS Frequency 20 Hz - 10 kHz
- Ohm: 600 Ω/6/60/600 kΩ/6/60/100 MΩ; ± 0,03 % + 0.01
- Frequency: 20 Hz ... 1 MHz ± 0,01 % + 0.003
- Capacitance: 2/20/200 nF/2/200/10000 μF ; ± 1 % + 0.5
- Temperature: -200°C ... +660°C (RTD) ; + 0.08% + 0.002 / -200°C ... +1372°C (Typ-K); ± 0,5°C
