Description

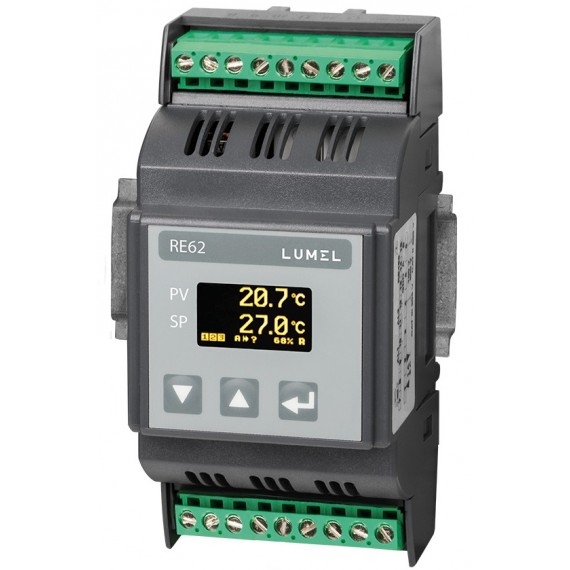

RE62 is destined to control temperature and other physical quantities (pressure, humidity, level, etc.) in plastics industry, food industry and other where there is a need to stabilize the changes of the measured value.
Technical data
- universal input: for thermoresistors, thermocouples or standard analog signals.
- control: dual-point based on SMART PID algorithm (very high accuracy is quaranteed ), on-off and alarm signalization
- 3 outoputs depending on the execution:
max 3 x relay
max 2 x binary to SSR
max 1 x analog
max 1 x output for supply 24V d.c.
- interface RS485 with MODBUS protocol (option)
- configuration parameters via keys or an optional RS485 and free eCon software
- modular design S type designed for 35 mm rail acc. to EN 62208 standard (meter has a width of 3 modules)
- universal supply 22...60V a.c / 20...60V d.c or 60...253V a.c / 60...300 V d.c.
- graphic OLED display
